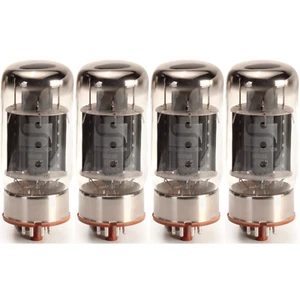

6550C, Svetlana Vacuum Tube, Matched Quad, Power
US $263.80
as low as $45.78/mo with
Condition:
New
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.
6 available1 sold
- Buy It Now6550C, Svetlana Vacuum Tube, Matched Quad, Power
Oops! Looks like we're having trouble connecting to our server.
Refresh your browser window to try again.
Shipping:
US $12.30 USPS Ground Advantage®.
Located in: Tempe, Arizona, United States
Delivery:
Estimated between Thu, Jul 31 and Mon, Aug 4 to 94104
Returns:
30 days returns. Buyer pays for return shipping. If you use an eBay shipping label, it will be deducted from your refund amount.
Payments:
.
As low as $45.78/mo with Klarna.
*No Interest if paid in full in 6 months on $149+. See terms and apply now- for PayPal Credit, opens in a new window or tab
Earn up to 5x points when you use your eBay Mastercard®. Learn moreabout earning points with eBay Mastercard
Shop with confidence
Seller assumes all responsibility for this listing.
eBay item number:126672750404
Item specifics
- Condition
- Brand
- Svetlana
- MPN
- T-6550C-SV-MQ
- Compatible Brand
- Any
- Compatible Model
- Any
- Features
- None
- Amplifier Type
- Unknown
- Cathode to Heater Max.
- -300 V / +200 V
- Class A Typical Grid 1 Voltage
- -22 V
- Class A Typical Grid 2 Voltage
- 225 V
- Class A Typical Idle Grid 2 Current
- 4 mA
- Class A Typical Idle Plate Current
- 87 mA
- Class A Typical Load Resistance
- 3000 Ω
- Class A Typical Max. Signal Grid 2 Current
- 18 mA
- Class A Typical Max. Signal Plate Current
- 105 mA
- Class A Typical Peak AF Grid 1 Voltage
- 22 V
- Class A Typical Plate Voltage
- 400 V
- Class A Typical Signal Output at 5% Distortion
- 12 W
- Class A Typical Transconductance
- 9500 μS
- Cooling
- Convection
- Diameter
- 46 mm
- Envelope Temp. Max.
- 250 °C
- Grid 1 to Cathode and Grid 3, Grid 2, Base, and Heater
- 18.5 pF
- Grid 1 to Plate Max.
- 1.1 pF
- Heater Current Nom.
- 1.6 A
- Heater Voltage Max.
- 6.9 V
- Heater Voltage Min.
- 5.7 V
- Heater Voltage Nom.
- 6.3 V
- Height
- 116 mm
- Max. DC Cathode Current
- 175 mA
- Max. Grid 1 Voltage
- -300 V
- Max. Grid 2
- Voltage:400 V
- Max. Grid 2 Dissipation
- 6 W
- Max. Plate Dissipation
- 35 W
- Max. Plate Voltage
- 680 V
- Plate to Cathode and Grid 3, Grid 2, Base, and Heater
- 12.5 pF
- Seated Height
- 106 mm
- Weight Approx.
- 100 g
- Type
- Vacuum Tube
- UPC
- Does Not Apply
